TELESCOPIC HANDLERS
JCB has been pioneering the telehandler concept since 1977. Since then, we’ve remained the world’s leading brand. The JCB telehandler range has come to epitomize the very highest levels of performance and productivity. Not only that, but the JCB telescopic handler lineup is one of the most extensive offered, with competitive run costs, world-class build quality, enviable versatility, and top residual values.

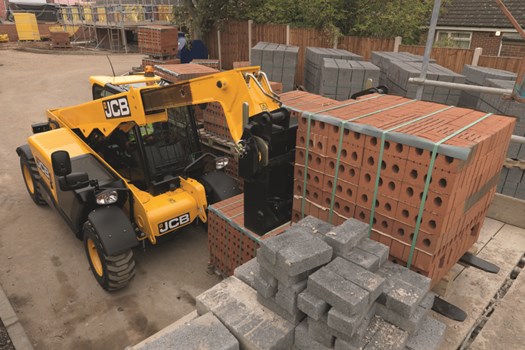

505-20TC TELEHANDLER
Every JCB telehandler is designed to offer superb productivity, and the 505-20TC telehandler is no different.
Excellent visibility and maneuverability, versatile performance, potent power and innovation-driven efficiency are all part of the package.
Max Lift Capacity
5,500 lbs
Max Lift Height
20’0″
Engine Power
74 hp
Lift Capacity at Full Height
3,900 lbs
Lift Capacity at Full Reach
1,750 lbs
Max Speed
15 mph

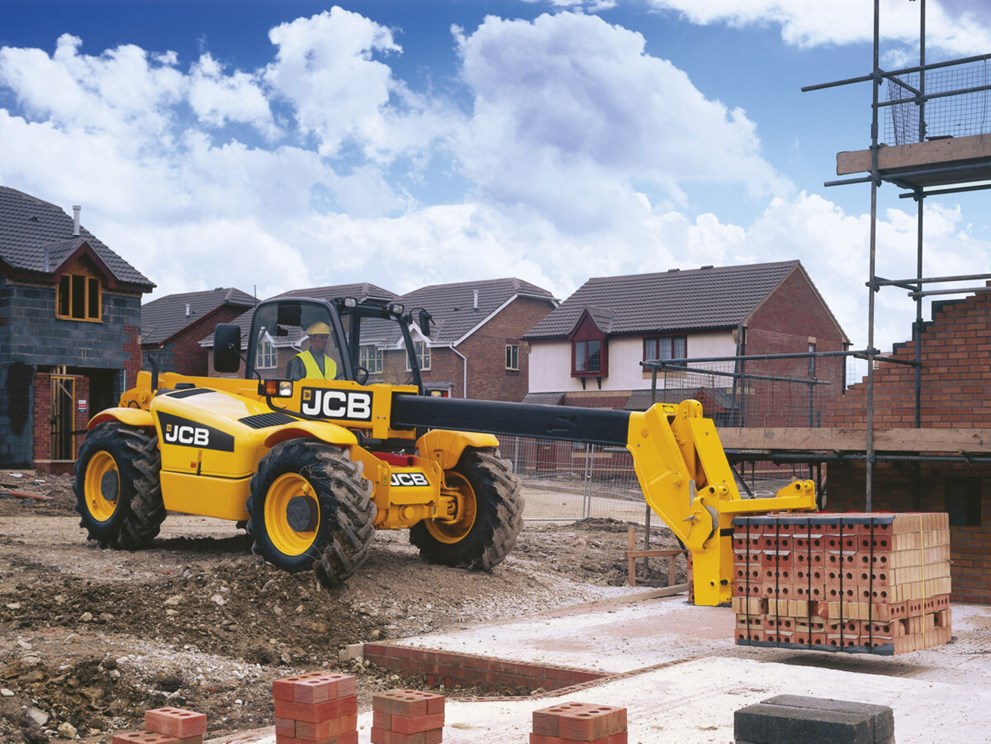

506-23TC TELEHANDLER
The JCB 506-23TC telescopic handler is the smallest of our full-size telescopic handlers and sits on a chassis designed for ground-engaging and extended reach.
The side-mounted, highly efficient JCB EcoMAX engine combines with JCB axles and a JCB transmission to ensure a reliable drivetrain performance from field-proven telehandler components.
Max Lift Capacity
6,000 lbs
Max Lift Height
23’0″
Engine Power
74 hp
Lift Capacity at Full Height
6,000 lbs
Lift Capacity at Full Reach
3,000 lbs
Max Speed
20 mph
506-36 TELEHANDLER
The high boom design of our smallest “Lift & Place” telescopic handler allows for capacities of 6,000 lbs and a lift height of 36 feet.
This model is ideal for masonry and framing applications and is a must for all rental fleets.
Max Lift Capacity
6,000 lbs
Max Lift Height
36’4″
Engine Power
74 hp
Lift Capacity at Full Height
6,000 lbs
Lift Capacity at Full Reach
1,800 lbs
Max Speed
15.5 mph
507-42 TELEHANDLER
This easy-to-operate telescopic handler is equipped with low effort servo controls that are arranged in a pattern style that most operators are accustomed to.
The ‘low effort’ doesn’t just stop at operating the machine – with proven reliability and easy access to the side-mounted engine for daily checks, this machine is one of the easiest machines to maintain on the market today.
Max Lift Capacity
7,000 lbs
Max Lift Height
42’0″
Engine Power
74 hp
Lift Capacity at Full Height
6,000 lbs
Lift Capacity at Full Reach
1,600 lbs
Max Speed
15.5 mph

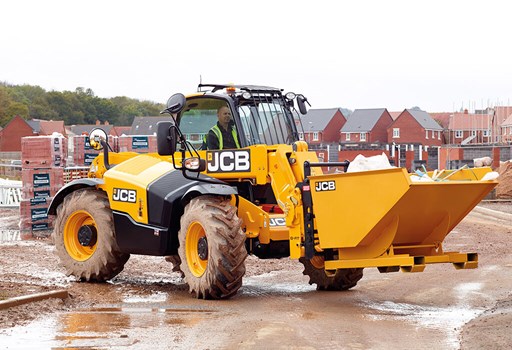

509-23TC TELEHANDLER
The JCB 509-23TC is a highly efficient telescopic handler powered by a JCB EcoMAX engine and with a chassis designed for work with buckets and forks.
The side-mounted, highly efficient JCB EcoMAX engine combines with JCB axles and a JCB transmission to ensure a reliable drivetrain performance from field-proven telehandler components.
Max Lift Capacity
9,000 lbs
Max Lift Height
23’0″
Engine Power
109 hp
Lift Capacity at Full Height
5,250 lbs
Lift Capacity at Full Reach
3,400 lbs
Max Speed
20 mph

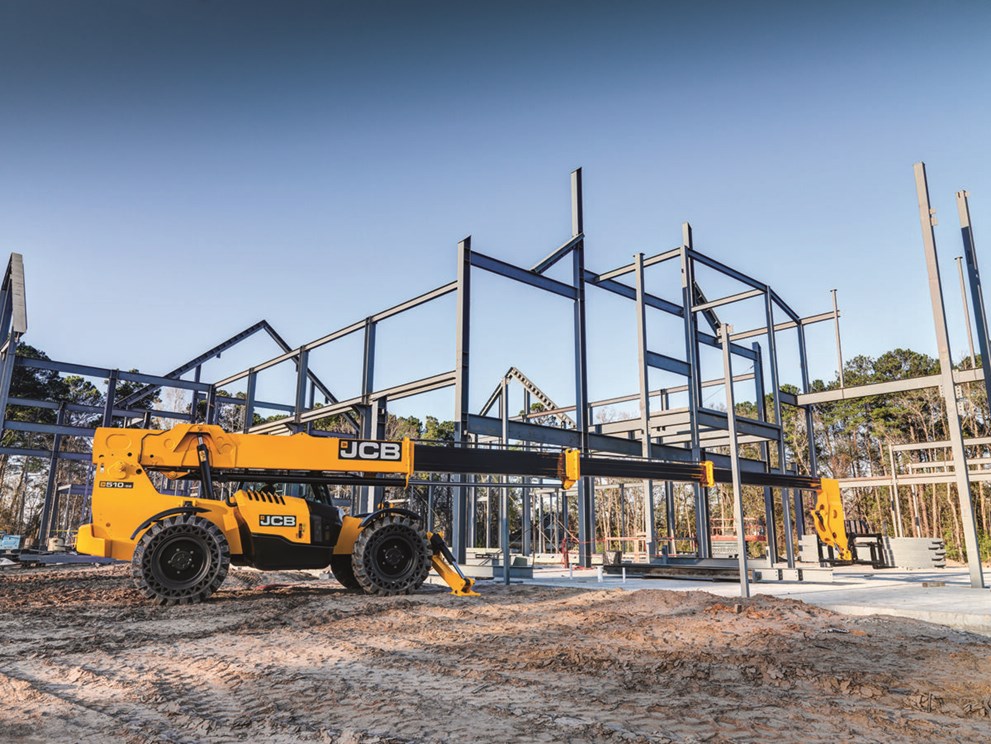

510-56 TELEHANDLER
The first model in our range to benefit from our wide set stabilizers. The high boom design allows for capacities of 10,000 pounds and a lift height of 56 feet. This model is ideal for masonry and framing applications and is a must for all rental fleets.
This easy-to-operate telescopic handler is equipped with low effort servo controls that are arranged in a pattern style that most operators are accustomed to. The ‘low effort’ doesn’t just stop at operating the machine – with proven reliability and easy access to the side mounted engine for the daily checks, this machine is one of the easiest machines to maintain on the market today.
Max Lift Capacity
10,000 lbs
Max Lift Height
56’0″
Engine Power
74 hp
Lift Capacity at Full Height
4,000 lbs
Lift Capacity at Full Reach
3,000 lbs
Max Speed
15.5 mph

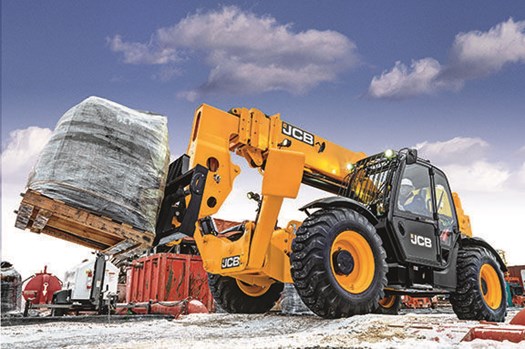

512-56 TELEHANDLER
Designed to place heavy loads with ease and precision, the 512-56 is one of our largest capacity telescopic handlers – now available with no after treatment using the JCB 74HP EcoMAX engine.
This easy-to-operate telescopic handler is equipped with low effort servo controls that are arranged in a pattern style that most operators are accustomed to. The ‘low effort’ doesn’t just stop at operating the machine – with proven reliability and easy access to the side mounted engine for the daily checks, this machine is one of the easiest machines to maintain on the market today.
Max Lift Capacity
12,000 lbs
Max Lift Height
56’0″
Engine Power
74 hp
Lift Capacity at Full Height
5,000 lbs
Lift Capacity at Full Reach
3,500 lbs
Max Speed
15.5 mph
512-56 TELEHANDLER
Designed to place heavy loads with ease and precision, the 512-56 is one of our largest capacity telescopic handlers – now available with no after treatment using the JCB 74HP EcoMAX engine.
This easy-to-operate telescopic handler is equipped with low effort servo controls that are arranged in a pattern style that most operators are accustomed to. The ‘low effort’ doesn’t just stop at operating the machine – with proven reliability and easy access to the side mounted engine for the daily checks, this machine is one of the easiest machines to maintain on the market today.
Max Lift Capacity
14,000 lbs
Max Lift Height
56’0″
Engine Power
109 hp
Lift Capacity at Full Height
5,000 lbs
Lift Capacity at Full Reach
3,500 lbs
Max Speed
15.5 mph
