Winkle scrap magnets set the standard for performance and durability in the recycling industry. These magnets are designed to maximize lifting capacity of material handling equipment as well as lengthen the service life of the magnet as a whole. Winkle magnets are optimized to work with your lifting equipment, materials, and processing capacity. Company Wrench has been a proud Winkle dealer since 2007. We carry a large selection of new and used Winkle magnets available for rent or sale.

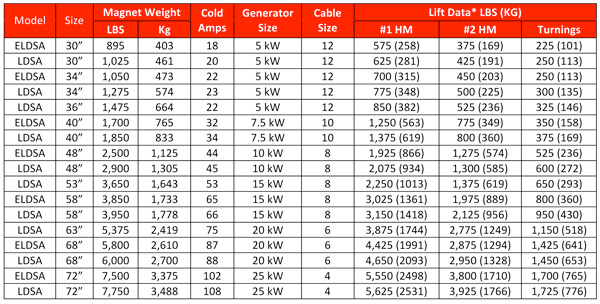

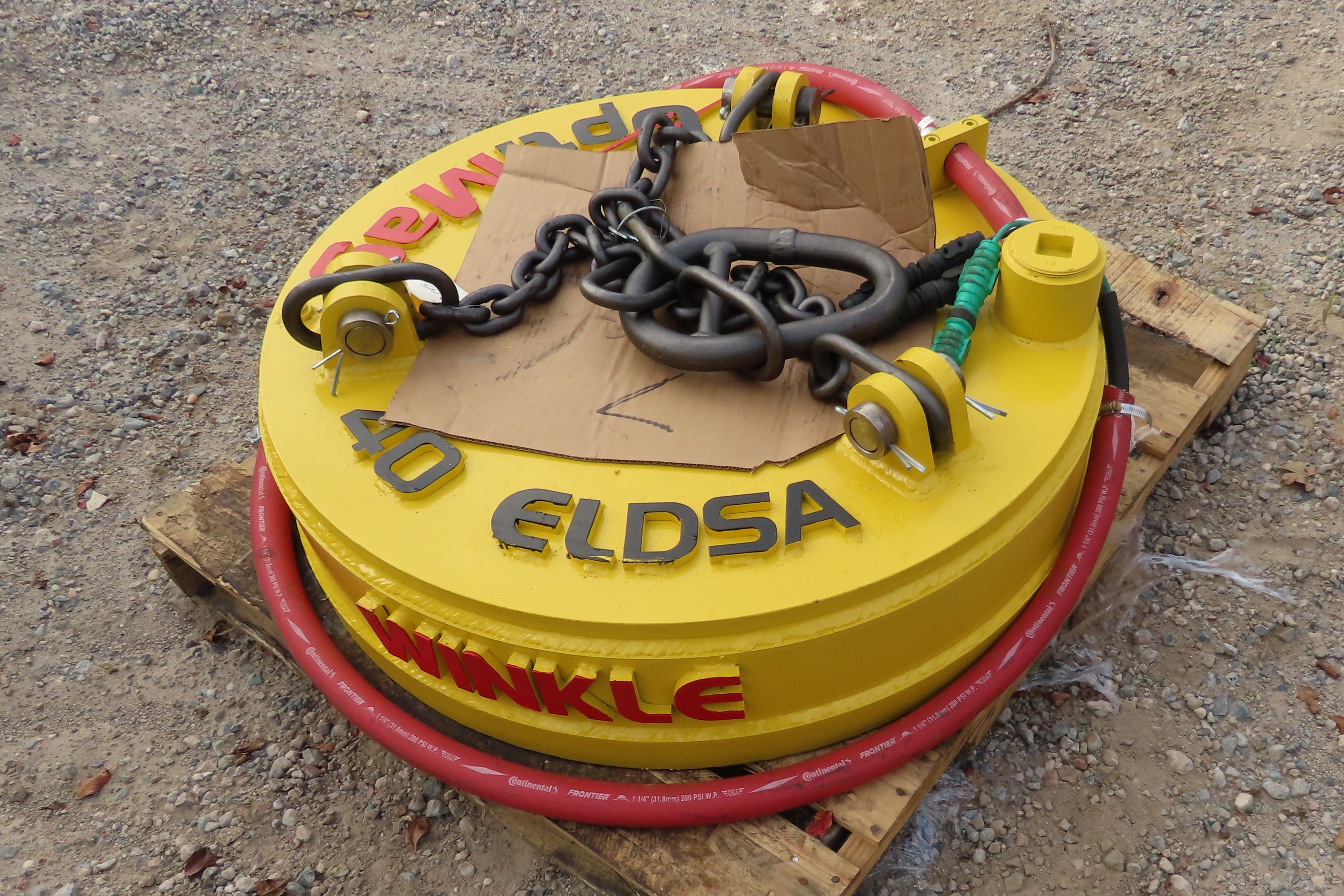

LDSA
The Winkle LDSA and ELDSA series meet the rising demands of the recycling industry when capacity and high production are essential. The LDSA Magnet series has the best lift-to-weight ratio and duty cycles available. Scrap processors worldwide choose the LDSA series to achieve ultimate crane and lifting magnet capacity. Features include:
- Deep field design.
- Heavy-duty manganese bottom plate.
- 75% continuous duty cycle.
- Durable alloy steel chain.
- Class H Insulation.

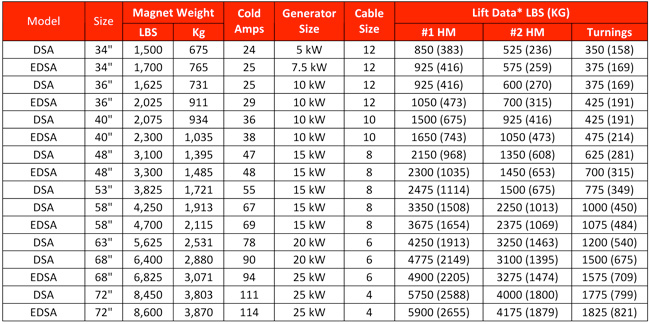

DSA/EDSA
Winkle’s DSA and EDSA Series magnets provide optimum performance at an economical price. Using state of the art technology these magnets are designed to achieve durability, exceptional duty cycles and a superior lift to weight ratio. The DSA and EDSA series provide maximum saturation of material densities and peak performance.
- Aluminum wound coil.
- 75% continuous duty cycle.
- Heavy-duty manganese bottom plate
- Available in deep field or extra deep field designs.
- Heavy-duty or fabricated cast designs available.
-
2021 WINKLE MAGNET, 48IN DSA – 0021020
Serial #: MG3898
Stock #: 0021020* RR1
Location: LAKELAND, FL48in, 3,100lbs, 230v, 47amps.
$15,000.00 View All Features -
2021 WINKLE MAGNET, 63IN DSA – 0023180
Serial #: MG4027
Stock #: 0023180
Location: MONROE, OH63in, 5,625lbs, 230v, 78amps.
$30,000.00 View All Features -
2021 WINKLE MAGNET, 63IN DSA – 0023181
Serial #: MG4005
Stock #: 0023181* CDG
Location: MONROE, OH63in, 5,625lbs, 230v, 78amps.
Call For Price View All Features -
2021 WINKLE MAGNET, 63IN DSA – 0023224
Serial #: MG4077
Stock #: 0023224* BDH
Location: CARROLL, OH63in, 5,625lbs, 230v, 78amps.
Call For Price View All Features -
2021 WINKLE MAGNET, 63IN DSA – 0023876
Serial #: MG4150
Stock #: 0023876* BDH
Location: MONROE, OH63in, 5,625lbs, 230v, 78amps.
Call For Price View All Features -
2022 WINKLE MAGNET, 48IN DSA – 0030250
Serial #: MG4436
Stock #: 0030250
Location: LEXINGTON, SC48in, 3,100lbs, 230v, 47amps.
Call For Price View All Features -
2022 WINKLE MAGNET, 63IN DSA – 0026162
Serial #: MG4230
Stock #: 0026162
Location: CLEVELAND, OH63in, 5,625lbs, 230v, 78amps.
$40,000.00 View All Features -
2022 WINKLE MAGNET, 68IN DSA – 0025856
Serial #: MG4190
Stock #: 0025856* BDH
Location: MONROE, OH68in, 6,400lbs, 230v, 90amps.
$43,500.00 View All Features -
2022 WINKLE MAGNET, 68IN DSA – 0025857
Serial #: MG4204
Stock #: 0025857* TCL
Location: CARROLL, OH68in, 6,400lbs, 230v, 90amps.
$43,500.00 View All Features -
2022 WINKLE MAGNET, 68IN DSA – 0030322
Serial #: MG4506
Stock #: 0030322
Location: MONROE, OH68in, 6,400lbs, 230v, 90amps.
Call For Price View All Features -
2023 WINKLE MAGNET, 40IN DSA – 0030379
Serial #: MG4617
Stock #: 0030379* CB
Location: CHARLOTTE, NC40in, 2,075lbs, 230v, 36amps.
Call For Price View All Features -
2023 WINKLE MAGNET, 48IN DSA – 0030849
Serial #: MG4440
Stock #: 0030849* RESV
Location: LAKELAND, FL48in, 3,100lbs, 230v, 47amps.
Call For Price View All Features
